Powerful Performance
at an Affordable Price

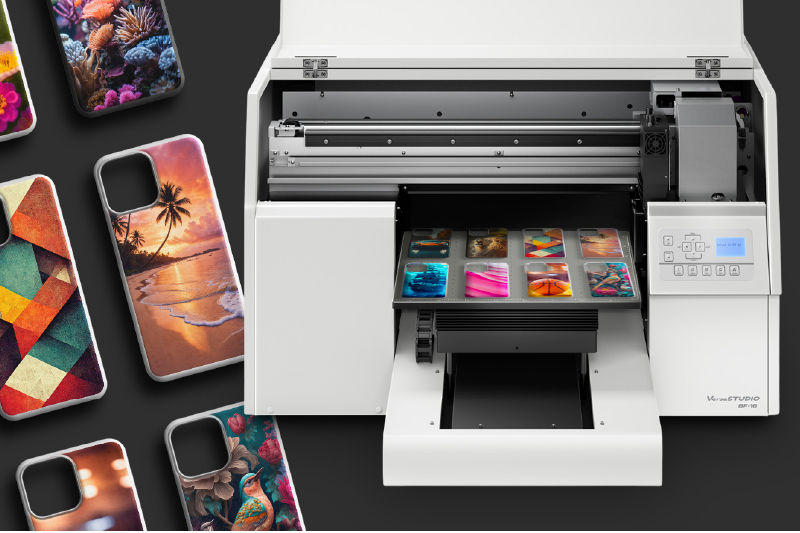

NEW VersaSTUDIO NEWBF-16 Desktop UV Flatbed Printer
Explore your creative and profit-making potential with the VersaSTUDIO BF-16, the new desktop UV flatbed printer from Roland DG.
Designed for Entrepreneurs, Creators, Artists, and Producers, the BF-16 offers exceptional print quality and versatility with outstanding productivity and price.
Compact and affordable, it is the perfect partner for your new business.
With the BF-16, it is easy to embark on the profitable personalization market, including cell phone cases, cosmetic packaging, fashion accessories, gifts, promotional items, and much more.
Welcome to a new world of creative possibilities!
Infinite Possibilities
Print reliably on a wide variety of materials including plastic, paper, leather, and wood.

Powerful Productivity

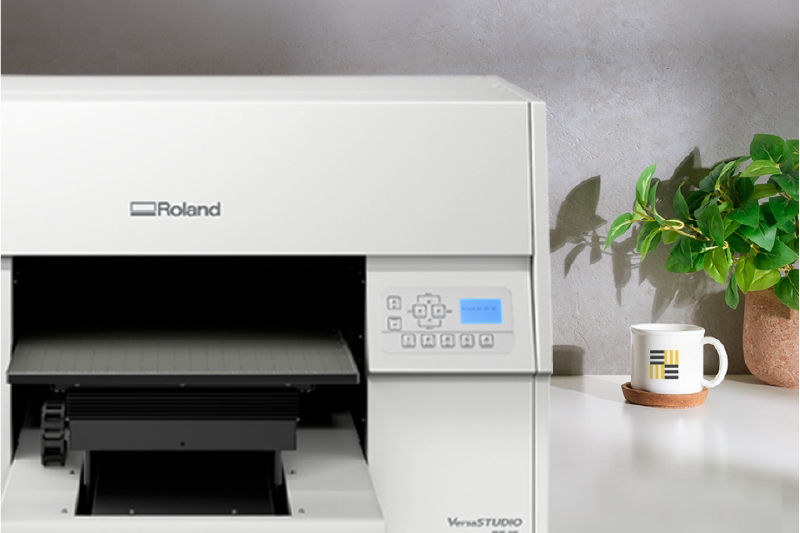

Compact Size

Starter Price

Professional Quality

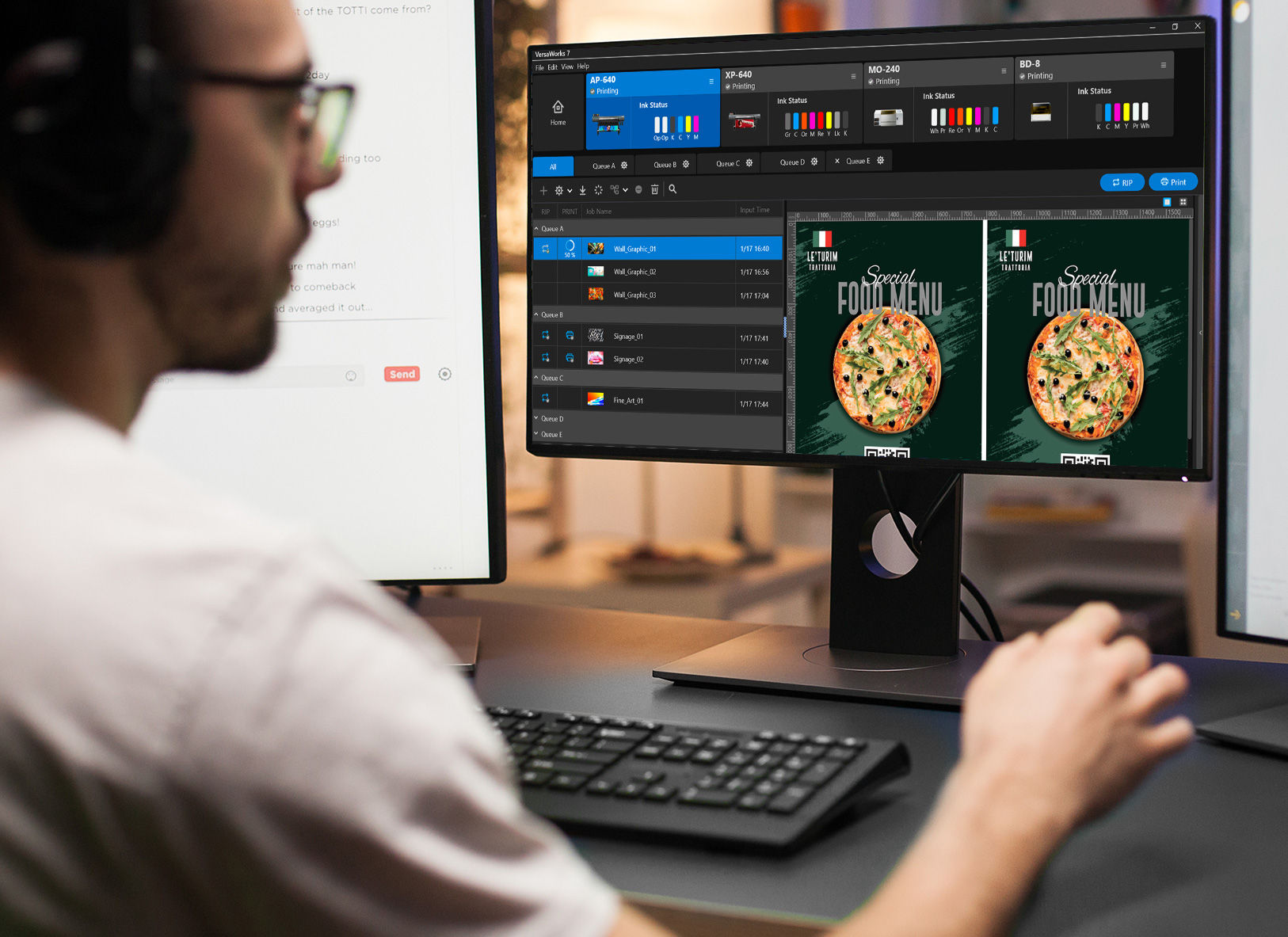

Included VersaWorks 7 RIP Software

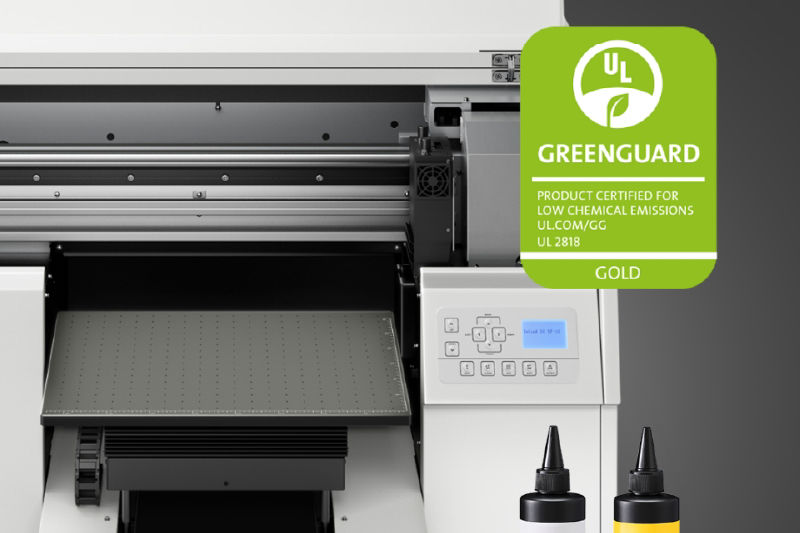

GREENGUARD Gold Certified D-UAB Ink
Discover Your Profit-Making Potential
Get started today with the perfect VersaSTUDIO UV desktop printer for your business.
Get started today with the perfect VersaSTUDIO UV desktop printer for your business.
*Numbers shown are estimates based on averages only and will vary by task requirements.
**Optional accessory
Expand Your Creative Possibilities


Roland DG Care
More Information
Datasheet
Download Your BF-16 Series Datasheet
Get your digital guide to all the features, applications, benefits and specifications of the UV Flatbed Printer.
Download DatasheetSpecifications
VersaSTUDIO BF-16
BF-16 | ||
---|---|---|
Printing Method | Piezo ink-jet method | |
Maximum objects to be printed on | Width | Max. 430 mm (16.9 in.) |
Length | Max. 340 mm (13.3 in.) | |
Thickness | Max. 90 mm (3.54 in.) | |
Weight | Max. 5 kg (11.0 lb.) | |
Maximum printing width / printing length | Max. 420 mm × 297 mm (16.5 in. × 11.6 in.) | |
Ink | Type | D-UAB (220 ml bottle) |
Colors | CMYK Wh Gl | |
Ink-curing unit | Built-in UV-LED lamp | |
Printing resolution (dots per inch) | Max. 1,200 dpi | |
Connectivity | Ethernet 1000 BASE-T for control PC only | |
Rated input | 100 - 240 Va.c. 50/60 Hz 3 A | |
Power consumption | During operation | Approx. 250 W |
During standby | Approx. 60 W | |
Acoustic noise level | During operation | 67 dB (A) or less |
During standby | 50 dB (A) or less | |
Dimensions (Width x Depth x Height) |
964 mm × 908 mm × 592 mm (38.0 in. × 35.8 in. × 23.4 in.) |
|
Weight |
90 kg (198.5 lb.) |
|
Environment |
Temperature: 22 to 33°C (71.6°F to 91.4°F), humidity: 30 to 65 % RH (no condensation) Even when the machine is not in use, keep it at a temperature of 22 to 33°C (71.6 to 91.4°F) and a relative humidity of 30 to 65 % RH (with no condensation). |
|
Included Items | Power cord, Cleaning liquid, User's Manual, Software (VersaWorks), etc. |
-
*Operating environment (Use the machine in an operating environment within these ranges.)
