Make Your Mark

VersaSTUDIO MPX-90S Desktop Metal Printer

Perfect for gift personalisation, the METAZA MPX-90S metal engraving machine is a cost-effective, user-friendly way to mark gold, steel, silver, titanium, brass and aluminium.

  • Small investment, big profit
  • Compact footprint
  • Engrave photos precisely
MPX_VersaSTUDIO Logo
MPX_VersaSTUDIO Logo

Your Story Starts Here

Featuring a selection of compact, easy-to-use and affordable solutions, the VersaSTUDIO range brings professional Roland DG quality to entrepreneurs and small businesses.

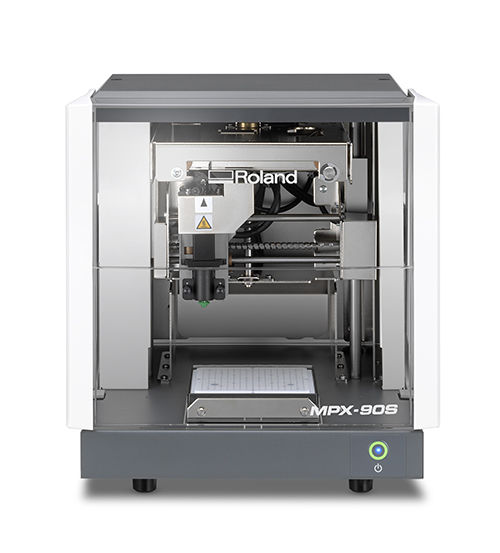

MPX90S_front_small
MPX90S_front_small

Pocket-sized Personalisation

The MPX-90S lets you create a wide range of custom engraved products easily and quickly. Simple to use without special expertise and filled with profit-making potential, this is a perfect solution to start your venture into personalisation with very little initial capital.


Printing Speed

50

mm/s


Max. Area

80x80

mm


Photo Keyrings

12

per hour*


Personalised Pen

60

per hour*

SEE ALL APPLICATIONS

*figures for illustration only

MPX_Less_Space_Mb
MPX_Less_Space_D

Less Space - More Opportunity

Start producing personalised products today. You can fit your entire business on an office desk or a kitchen table and create the foundation to build something even bigger in the future.

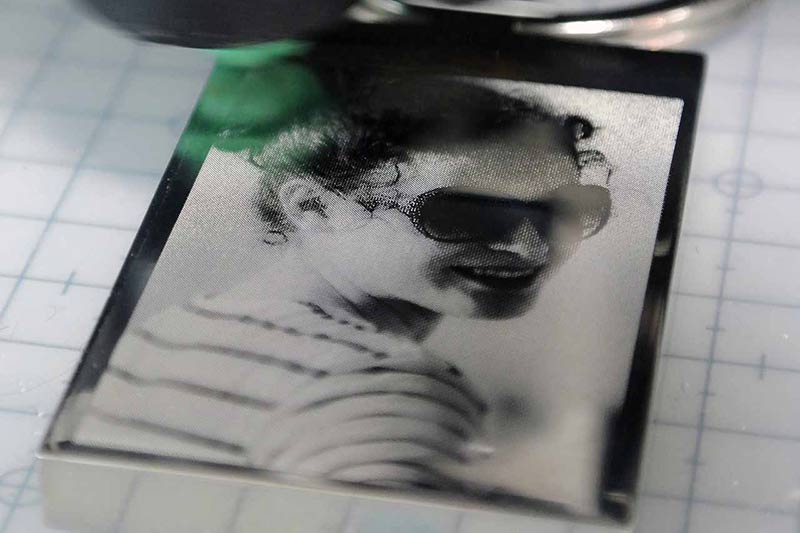

Home_business_key_ring_mobile

Engrave Photos on Metal

With the MPX-90S solution, you have everything you need to print text, logos and even photos onto metal items. In a matter of minutes, you can turn inexpensive blank items into highly desirable and lucrative products.

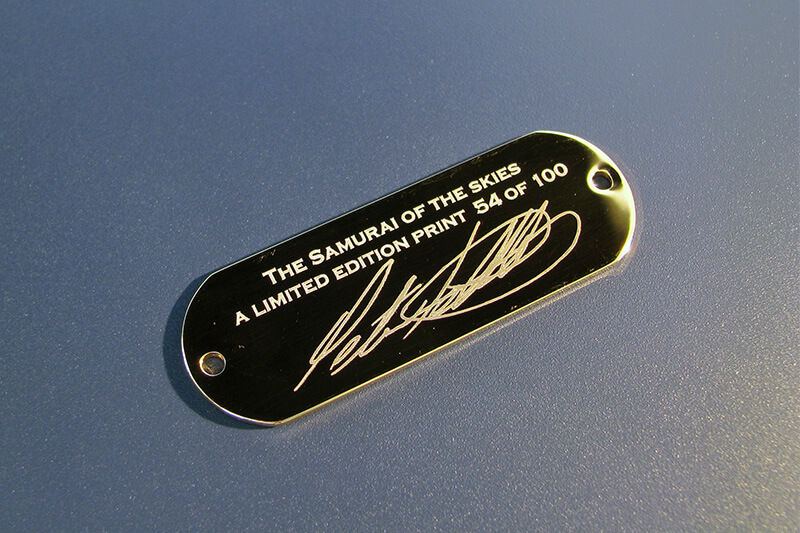

engraved metal plate mobile

Profit with Personalisation

Today's customers want to buy one-of-a-kind gifts and they will gladly spend extra to get the perfect present. The MPX-90S gives you the power to create a wide variety of applications and capitalise on this growing trend.

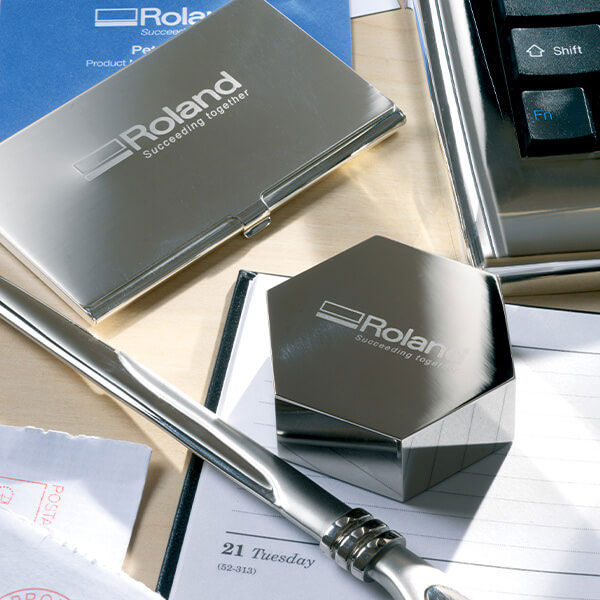

desk_small_hq
golf2022

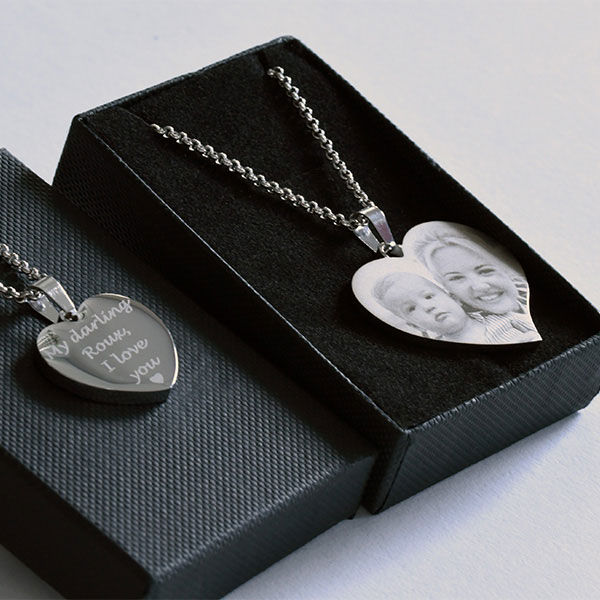

pendant_mpx

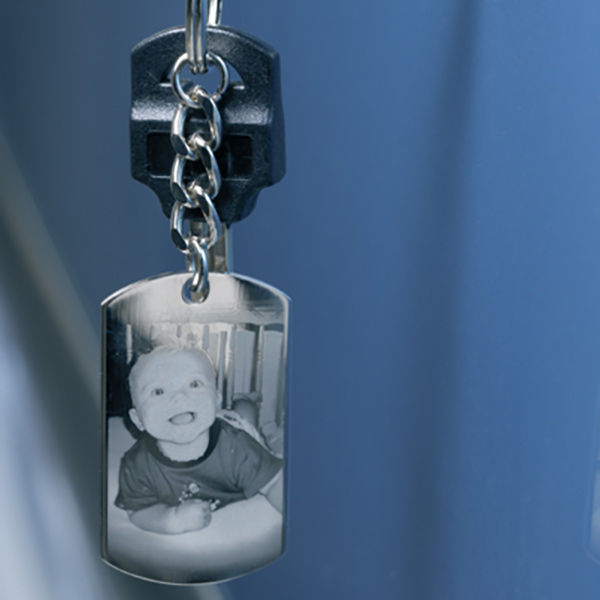

car
dog_small

Key Benefits


Great Return on Investment
Quickly create high-quality products with a generous mark up.
The Roland DG Legacy
Make a safe investment with Roland DG’s world-renowned quality and reliability.
Clean Environment
The device generates no shavings or dust and does not produce odours or smoke.
Fast Set-up and Ease of Use
Plug in and start working immediately thanks to Roland DG’s user-friendly interface.
Intuitive Software Included
METAZA Studio included, letting you easily create designs and engrave in a simple workflow.
Light and Portable
Easily set up the device in any permanent space or take it to events for instant item marking.

The Complete Solution

With the MPX-90S, you get more than just a device - you get everything you need to succeed.

MPX-90S Metal Printer

Go even further with our latest desktop metal engraver*

METAZA Studio Software

Power your personalisation with this user-friendly software

Roland DG Care Warranty

Secure your investment with industry-leading support

Clamping Tools

Mark a wide range of objects safely and securely

* See specification for all included items

Additional Information

Expand All | Collapse All

VersaSTUDIO MPX-90S

Model MPX-90S
Imprintable material Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, etc. *1
Loadable material size (width) × (length) × (thickness)
Max. 100 mm × 200 mm × 40 mm
Imprint area
Max. 80 mm × 80 mm
Resolution High resolution 529 dpi
Photo 353 dpi
Text 265 dpi
Vector 1058 dpi
Imprint direction Unidirectional imprinting or bidirectional imprinting *2
Imprint speed (Default) High resolution 33 mm/sec
Photo 50 mm/sec
Text 33 mm/sec
 Vector 24 mm/sec
Interface USB
Power requirements Dedicated AC adapter Input  100 to 240 VAC, 50/60 Hz
Output  19 VDC, 2.1 A
Rated current 1.6 A
Power consumption Approx. 24 W
Operating noise 70 dB (A) or less
Operating environment Temperature: 10 to 30°C (50 to 86°F), humidity: 35 to 80%RH (no condensation)
External dimensions (width) × (depth) × (height)
286 mm × 383 mm × 308 mm (11.26 in. × 15.08 in. × 12.13 in.)
Weight 10.8 kg
Included items AC adapter, power cord, test-use imprinting material, USB cable, Safety Precautions, etc.

*1 Vickers hardness [HV] of the imprinting surface must be 200 or less.
*2 Selectable with Windows driver

System Requirements for USB Connection

Model MPX-90S
Computer Model preinstalled with Windows 11, 10, or 8.1 (32- or 64-bit), or upgraded computer originally preinstalled with Windows 8.1 or later
USB cable
Use the included USB cable.
