VersaSTUDIO GS2-24 Desktop Vinyl Cutter

Compact, powerful and easy to use, the GS2-24 desktop cutter is perfect for starting your graphics business or bringing graphics production in-house.

  • Intuitive and user-friendly operation
  • Increased power to easily cut hundreds of materials
  • Fast and accurate cut performance
  • Built to fit into your workflow
GS2_VersaSTUDIO Logo
GS2_VersaSTUDIO Logo

Your Story Starts Here

Featuring a selection of compact, easy-to-use and affordable solutions, the VersaSTUDIO range brings professional Roland DG quality to entrepreneurs and small businesses.

FIND OUT MORE

Time to Turn Pro

With the GS2-24, you can create professional-quality graphics from a huge range of materials and take your business to the next level. With everything you need to get started, this solution from Roland DG is the only choice for serious entrepreneurs.

Cutting Speed

10-850

mm/s
Cutting Force

30-500

gf
Cutting Width

584

mm
Cutting Length

25

m
GS2_Foot_print
GS2_Foot_print

Small Footprint - Big Potential

Whether you're just starting out or adding to your set-up, you can easily fit the GS2-24 cutter into your workflow. For home-based hobbyists who want to turn pro, or established businesses looking to produce graphics in-house, space is no barrier to success.
gs2_tshirtbackground_mobile

Create Without Limits

With 40% more cutting force than the previous model, you can cut the most intricate designs from a vast range of materials including:

  • Self-Adhesive Vinyl
  • Heat Transfer Vinyl
  • Specialist Materials
  • Magnetic Sheet
  • Papers and Cardboard
  • Window Frosting
  • Reflective Vinyl
  • Rubber Sheet

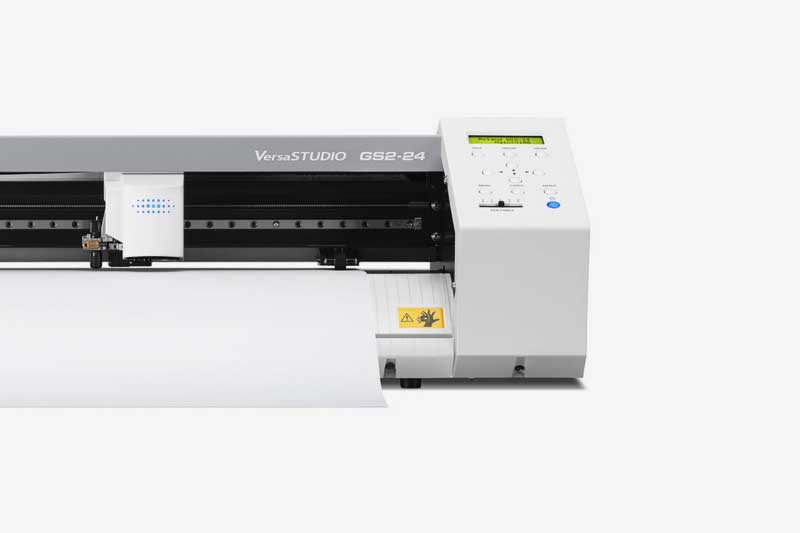

  • GS_M_Mob

    On Time Every Time

    Meet the tightest deadlines and deliver larger orders with 70% more cutting speed. The GS2-24 lets you create more products, more quickly and meet your customers' demands.
    GS2_Heat Transfer Vinyl Background_mobile

    Pinpoint Accuracy

    Produce premium quality results whether you're creating large-scale wall art, decorative T-shirt designs or small directional signage. The precision cutting of the GS2-24 allows you to accurately reproduce the tightest corners and thinnest lines.

    • Intricate designs and shapes
    • Small letters, numbers and symbols
    • Consistent results up to 25 m
    GS2_Work Your Way
    GS2_Work Your Way

    Work Your Way

    The GS2-24 solution includes the simple and versatile CutStudio software. This lets you create a compact and effective print-then-cut workflow. Simply add crop marks to your artwork, incorporate cut lines and the machine's intelligent registration tool will automatically cut your design with superb accuracy.
    GS2_Application Sign
    GS2_Application Tshirt
    GS2_Application Car
    GS2_Application Wall
    GS2_Application Sticker

    Key Benefits


    Great Return on Investment
    Affordable and powerful, the GS2-24 helps you easily grow your graphics production venture.
    The Roland DG Legacy
    Make a safe investment with Roland DG’s world-renowned quality and reliability.
    Monitor Status Easily
    Track the status of every cutting job instantly with a clear LED signal on the cutting carriage.
    Cut Printed Sheets Accurately
    Precise crop-mark detection lets you cut designs produced on your desktop printer.
    Fast Set-up and Ease of Use
    Plug in and start working immediately thanks to Roland DG’s user-friendly interface.
    Intuitive Software Included
    CutStudio included, letting you easily create designs and cut in a simple workflow.
    Works with Your Design Software
    Easily send your designs to the cutter straight from Adobe® Illustrator® or CorelDRAW®.
    Built to Suit Your Workflow
    Featuring both Ethernet and USB ports, the GS2-24 can work with your set-up.

    The Complete Solution

    With the GS2-24, you get more than just a device - you get everything you need to succeed.

    GS2-24 Desktop Cutter

    Go even further with our latest desktop cutting plotter*

    Cut Studio Software

    Produce your graphics with a powerful software package

    Roland DG Connect

    Build an efficient and reliable business with real-time analytics

    Roland DG Care Warranty

    Secure your investment with industry-leading support




    Available Accessories

    Additional Information

    Expand All | Collapse All

    VersaSTUDIO GS2-24

    Drive system Digital control servo motor
    Cutting mechanism Media-moving method
    Acceptable
    material size
    Width 50 - 700 mm (1.97 in. - 27.5 in.)
    Length Roll material: no restriction
    Flat material: 100 mm (3.94 in.) or more
    Maximum cutting area 584 mm (Width) × 25,000 mm (Length) (22.9 in. × 984 in.)
    Usable tools • CAMM-1 series blade (ZEC-U5032 / U5022 / U5025 / U3017)
    • Flat Bed blade (ZEC-U1715 / U3050 / U3075 / U3100)
    • Window film blade(ZEC-U5010)
    Cutting speed 10 - 850 mm/s (0.39 - 33.4 in./s)
    Blade force 30 - 500 gf
    Mechanical resolution 0.0125 mm/step (0.49 mil./step)
    Software resolution 0.025 mm/step (0.98 mil./step)
    Distance accuracy*1 Error of less than ±0.2% of distance traveled or 0.1 mm (3.94 mil.), whichever is greater
    Repeatability *1, *2 0.1 mm (3.9 mil) or less
    Alignment accuracy for cutting printed material *1, *3 ±1 mm (±39.4 mil.) or less for movement distance of 210 mm (8.3 in.) or less in material-feed direction and movement distance of 170 mm (6.7 in.) or less in width direction (Does not take influence of printer and material into account)
    Connectivity • Ethernet (automatic switching between 10BASE-T and 100BASE-TX)
    • USB 2.0 (FULL SPEED compliant)
    Replot memory 2 MB (buffer size: 8 MB)
    Command system CAMM-GLⅢ
    Power supply Dedicated AC adapter
    Input: 100 - 240 Vac, 50/60 Hz
    Output: 24 Vdc 2.7 A
    Rated current 1.0 A
    Power consumption Approx. 24 W
    Acoustic noise level  During operation 70 dB (A) or less
     During standby 40 dB (A) or less
    Outer dimensions 860 mm (Width) × 319 mm (Depth) × 235 mm (Height) (33.9 in. × 12.6 in. × 9.3 in.)
    Weight 13.5 kg (30 lb.)
    Environment Temperature 5 - 40 °C (41 to 104 °F)
    Humidity 20 - 80 %RH (no condensation)
    Included items Power cord, AC adapter, Blade, Blade holder, Roller base, USB cable, Alignment tool, Manuals

    • *1   According to material and cutting conditions as specified by Roland DG Corporation.
    • *2 • Excluding expansion/contraction of the media
    •      • Length in sheet feed direction: Within 1600 mm (62.9 in.)
    • *3   According to measurement standards as specified by Roland DG Corporation.
           • Software must be included Roland DG Corporation software.
           • Assumes use of a laser or inkjet printer with a resolution of 720 dpi or greater.
           • Excludes glossy and/or laminated material.
           • Excludes effects of warped printing due to accuracy of printer or effects of expansion/contraction of material.
           • May not be read correctly by the sensor depending on the printer ink (black) used.
