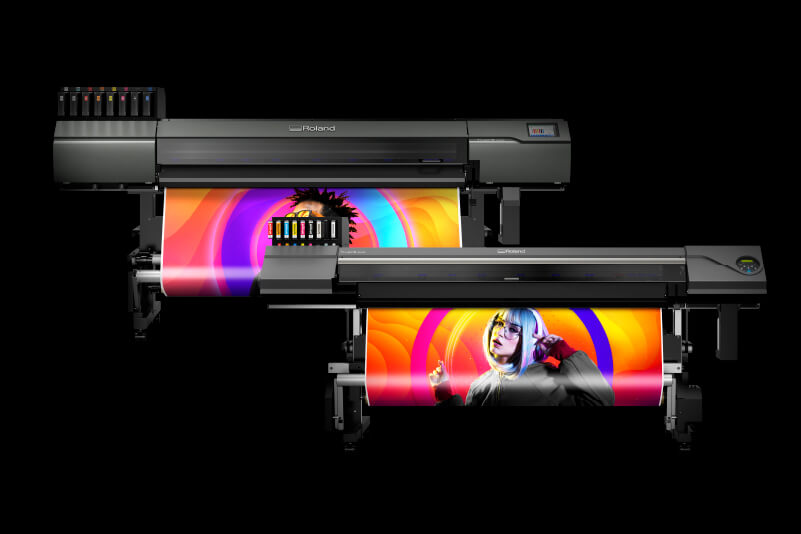

The TrueVIS LG & MG Series displayed together

TrueVIS LG & MG Series logo

A New Dimension in Print and Cut

TrueVIS LG & MG Series UV Printer/Cutters

Combining the flexibility of print and cut, the benefits of UV-LED printing and TrueVIS heritage, the LG and MG series add a new dimension to graphics printing.

  • High-definition output
  • Speciality printing for textures and effects
  • Broad media compatibility
  • High density white ink
  • Fast drying print for quick turnaround and finishing



Download Brochure:
LG Series  MG Series

WINNER
Keypoint Intelligence BLI Pick Award

Color Accuracy

Multi-Panel Wallpaper Consistency

Usability


See Full Report

Keypoint Intelligence Shares
Why They Awarded the LG & MG Series

UV Print and Cut Solutions

Image of a Truevis LG 640 model
LG Series
UV Printer/cutters
Available Size
64" 54" 30"
Available ink
CMYK, Gloss, White, Red, Orange, Primer
750 ml
Performance Features
High Speed Printing Touch Screen Control One-touch Auto Calibration Take-up unit
Image of an Truevis LG series model
MG Series
UV Printer/cutters
Available Size
64" 30"
Available ink
CMYK, Gloss, White, Red, Orange, Primer
220 / 500 ml
Professional Features
Tension Bar for Thin Films* Expansion Table for Semi-rigid Card*
* optional extra

Take Print and Cut Further

TrueVIS is synonymous with industry-beating print and cut machines. Enhance your capabilities with the added power of premium-quality UV-LED printing technology and speciality effects capabilities, and offer your customers even more products.

LGMGproductpagebacklit
LGMGproductpagewindow
LGMGproductpagesticker
LGMGproductpagepackaging
LGMGproductpagedoorsign
LGMGproductpagePOS
LGMGproductpageartcanvas

Everything You Need to Succeed

TrueVIS Printer/cutter

Choose from a variety of models and sizes to suit your business.

VersaWorks 6 RIP

Power your workflow with our most intelligent engine yet

Premium EUV Ink

Get stunning results every time with economical Eco UV ink

Roland DG Care Warranty

Secure your investment with industry-leading support

LGMGproductpageredwomanbackgroundmob

Ultimate Print Expression

The combination of ultra high-definition print technology and specially formulated UV ink lets you accurately reproduce colours in a wide colour gamut.

High Quality Ink

Using the latest ECO-UV EUV5 inks for exceptional and premium-value printing, we go beyond CMYK to give you even more options and flexibility. Talk to a Roland DG expert about your print requirements to discover the ink configuration that’s right for you..



CMYK

CMYK Get premium results with high-quality CMYK EUV ink.

Gloss

Generate a multitude of tangible effects, simulated embossing and gloss finishes.

White

Print high-opacity white details or add sub-coats for dark or transparent materials.

Red and Orange

With our True Rich Color preset, extend your available gamut and reproduce brand colours perfectly.

Primer

Apply primer to the print area with precision for extensive media compatibility.

Decal Release Primer*

Easily customise curved or irregular items, without cutting, using decal transfers.

Shrink Inks*

Perfect for flexibile packaging, Roland DG EUVS inks offer extended shrink capability.

* Available on MG Series models only.

See Specifications for Ink Configurations

Certifications

GREENGUARD Certified

GREENGUARD Gold

ECO-UV5 inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.

LG Series
High-performance Features

MG Series
Custom Professional Features

Health Check

Roland DG Connect App
For Everything Creative

Reduce downtime and improve work efficiency with a machine monitoring assistant that helps you gain a detailed understanding of your entire print operation while keeping your device running at optimum performance.

Health Check

Key benefits


Great return on investment Great Return on Investment
Affordable and powerful, the LG and MG Series can generate profits and pay for itself quickly.
Powerful Software Included - VersaWorks Powerful Software Included
VersaWorks 6 included, letting you produce print and cut output in a simple workflow.
Priced to Suit Your Business Priced to Suit Your Business
Roland DG UV print and cut solutions are available to fit any budget.
Sheet Perforated Cut Sheet Perforated Cut
Separate individual jobs without cutting the backing sheet enabling unattended long runs.
* This feature is only available for LG series.
Efficient and Fluid Workflows Efficient and Fluid Workflows
Produce your work, your way with flexible job-management features.
Professional Colour Management Professional Colour Management
Match your customers' colour with ease thanks to advanced RIP features.
Zip! Fast Set-up and Ease of Use Fast Set-up and Ease of Use
Plug in and start working immediately thanks to Roland DG’s user-friendly interface.
The Roland DG Legacy The Roland DG Legacy
Make a safe investment with Roland DG’s world-renowned quality and reliability.
Low Running Cost Low Running Cost
Long-life print heads and ink-clogging prevention ensures long life and sustained quality.
Texture Libraries Texture Libraries
Add extra expression to your prints easily with a library full of exciting printable textures.
Mobile Cost Tracking Mobile Cost Tracking
Track ink usage and more in real time with the Roland DG Connect mobile app.
ICC Profiles ICC Profiles
Access Roland DG's library of ICC profiles and find hundreds of profiles to match your needs.

For the Future

With over 28.000 users worldwide, TrueVIS perfectly embodies Roland DG's long legacy of premium, high-quality print and cut.

FIND OUT MORE

Specifications

Model LG-640 LG-540 LG-300
Printing method Piezo ink-jet method
Media Width 335 to 1625 mm (13.2 to 64 in.) 295 to 1371 mm (11.7 to 54 in.) 182 to 762 mm (7.2 to 30 in.)
Thickness Max. 1.0 mm (39.3 mil) with liner, for printing
Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
Roll outer diameter Max. 250 mm (9.8 in.)
Roll weight Max. 45 kg (99 lb.) Max. 35 kg (77 lb.) Max. 30 kg (66 lb.)
Core diameter 76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing / cutting width 1 Max. 1600 mm (62.9 in.) Max. 1346 mm (52.9 in.) Max. 736 mm (28.9 in.)
Ink
Type ECO-UV (EUV5P) 750ml pouch
Colors Eight colors (Cyan, Magenta, Yellow, Black, Primer White, Orange, and Red)
Seven colors(Cyan, Magenta, Yellow, Black, Gloss, White, and Red) and Primer
Seven colors(Cyan, Magenta, Yellow, Black, White, Orange and Red) and Primer
Seven colors (Cyan, Magenta, Yellow, Black, White, Orange, and Red)
Six colors Cyan, Magenta, Yellow, Black, Gloss and White) and Primer
Six colors (Cyan, Magenta, Yellow, Black, Gloss, and White)
Four colors (Cyan, Magenta, Yellow, and Black)
Ink curing unit Built-in UV-LED lamp
Print resolution (dots per inch) Max. 1200 dpi
Cutting speed  10 to 300 mm/s (0.39 to 11.8 in./s)
Blade force 2 30 to 500 gf
Blade   Type Roland CAMM-1 series blade
Offset 0 to 1.500 mm (0 to 59 mil)
Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
Media heating system 3 Front heater set temperature: 30 to 55 ℃ (86 to 131 °F)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements 100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A 100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A 100-120/220-240 Va.c. 50/60 Hz 5.7/2.6 A
Power consumption During operation  Approx. 800 W Approx. 800 W Approx. 650 W
Sleep mode Approx. 85 W
Acoustic noise level During operation
63 dB (A) or less
During standby  58 dB (A) or less
Dimensions (with stand)  2902 mm x 748 mm x 1412 mm (114.3 in. x 29.5 in. x 55.6 in.) 2648 mm x 748 mm x 1412 mm (104.3 in. x 29.5 in. x 55.6 in.) 2038 mm x 748 mm x 1412 mm (80.3 in. x 29.5 in. x 55.6 in.)
Weight (with stand) 209 kg (461 lb.) 198 kg (437 lb.) 168 kg (371 lb.)
Environment During operation 4 Temperature : 20 to 32 ℃ (68 to 89.6 °F), Humidity: 35 to 80 % RH (no condensation)
Not operating Temperature : 5 to 40 ℃ (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)

Specifications, designs and dimensions listed may be subject to change without notice
1 The length of printing or cutting is subject to the limitations of the program.
2 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
3 Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
4 Operating environment (Use in an operating environment within this range.)
Model MG-640 MG-300
Printing method Piezo ink-jet method
Media Width 210 to 1625 mm (8.3 to 64 in.) 182 to 762 mm (7.2 to 30 in.)
Thickness Max. 1.0 mm (39.3 mil) with liner, for printing
Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
Roll outer diameter Max. 210 mm (8.2 in.)
Roll weight Max. 40 kg (88 lb.) Max. 25 kg (55 lb.)
Core diameter 76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing / cutting width 1 Max. 1600 mm (62.9 in.) Max. 736 mm (28.9 in.)
Ink
Type ECO-UV (EUV5) 220 ml cartridge (white)
ECO-UVS 220 ml cartridge (cyan, magenta, yellow, black, white)
ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer)
Colors Eight colors (cyan, magenta, yellow, black, red, orange, white, gloss)
Seven colors (cyan, magenta, yellow, black, red, orange, white)
Seven colors(cyan, magenta, yellow, black, red, orange, white) and primer
Seven colors(cyan, magenta, yellow, black, red, white, gloss) and primer
Six colors(cyan, magenta, yellow, black, white, gloss) and primer
Six colors(cyan, magenta, yellow, black, white, gloss)
Four colors(cyan, magenta, yellow, black)
Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Or and Gl)
Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Or and Gl)
Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Pr and Gl)
Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Pr and Gl)
Ink curing unit Built-in UV-LED lamp
Print resolution (dots per inch) Max. 1440 dpi
Cutting speed  10 to 300 mm/s (0.39 to 11.8 in./s)
Blade force 2 30 to 500 gf
Blade   Type Roland CAMM-1 series blade
Offset 0 to 1.500 mm (0 to 59 mil)
Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements 100-240 Va.c. 50/60Hz 2.8 A 100-240 Va.c. 50/60Hz 2.7 A
Power consumption During operation  Approx. 250 W Approx. 240 W
Sleep mode 40 W
Acoustic noise level During operation
63 dB (A) or less
During standby  53 dB (A) or less
Dimensions (with stand)  2819 (W) x 781 (D) x 1316 (H) mm (111 [W] x 31 [D] x 52 [H] in.) 1945 (W) x 781 (D) x 1316 (H) mm (77 [W] x 31 [D] x 52 [H] in.)
Weight (with stand) 163 kg (360 lb.) 125 kg (276 lb.)
Environment During operation 3 Temperature: 15 to 32 °C (59 to 89.6 °F), fumidity: 20 to 80 %RH (no condensation)
Not operating Temperature : 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)

Specifications, designs and dimensions listed may be subject to change without notice
1 The length of printing or cutting is subject to the limitations of the program.
2 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
3 Operating environment (Use in an operating environment within this range.)
